DESCRIPTION

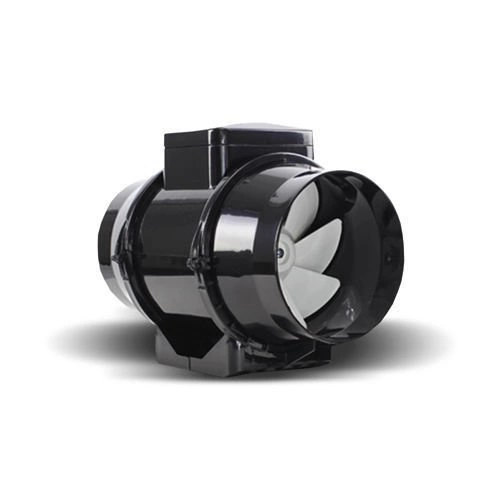

MIXED-FLO fans are interesting because of the wide range of possibilities and high efficiency, technology made ensures a strong air stream and high air pressure. The fans are recommended as an element of ventilation systems for various commercial and industrial facilities with high noise requirements, ie libraries, conference rooms, educational facilities, kindergartens, etc. The Black Orchid MIXED-FLO fan contains a built-in speed control module
SPECIFICATION
- Connection / diameter of the channel: 125mm (5 ")
-Capacity:
minimum: 220 m3 / h,
maximum: 280 m3 / h
-Power:
minimal: 23W
maximum: 37W
-Voltage [V/50HZ]: 1-230
-Amperarz [A]
min: 0.18
max: 0.27
-RPM turnover:
min: 1950
max: 2455
-Maximum working temperature: 0 - +60 ° C
-For supply and exhaust ventilation
- For ventilation of large and medium-sized rooms
-Low noise level min. 28 dBA max. 37 dBA
- Motor with external rotor on ball bearings with built-in overload protection
- High quality plastic housing
- Speed control by means of a speed controller
-For horizontal and vertical assembly
- Security standard: IPX4
- Powerful, reliable and economical
- Works without vibration
-Includes a cable with EURO connection
-Black colour
| Maximum fan performance (m3 / h): | 280 |
| power (W): | 37 |
| Flange (mm): | 125 |
| Loudness (dB): | 37 |
| Airflow regulation: | yes |
| temperature regulation: | no |
| Real power consumption (W): | 62 |
