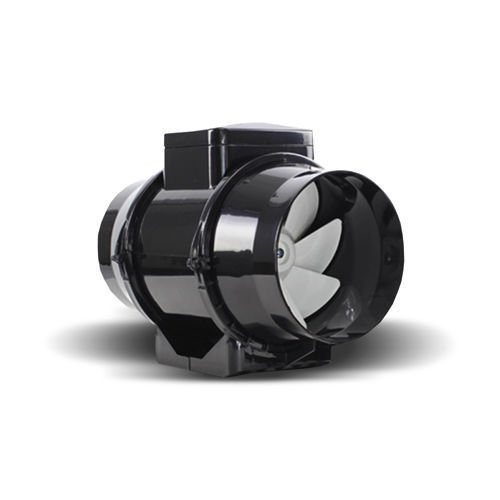

Mixed-Flo 150 P 150mm / 520 m3/h fan

  • Mixed-Flo 150 P 150mm / 520 m3/h fan
Producer: Black Orchid
Flange (mm): 150
  • Powerful Black Orchid channel fan with speed control
119,18 €
/ piece

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
MIXED-FLO fans are interesting because of the wide range of possibilities and high performance, the technology made provides a strong airflow and high air pressure. Fans are recommended as part of ventilation systems for various commercial and industrial facilities with high noise requirements, i.e. libraries, conference rooms, educational institutions, kindergartens, etc.

The Black Orchid MIXED-FLO fan includes a built-in speed control

Specification





-Connection/channel diameter: 150mm (6")

-Bandwidth:

minimum: 405m3/h,

maximum: 520 m3/h

-Power:

minimum: 28W

maximum: 54W

-Voltage [V/50HZ]: 1-230

-Ampere [A]

min: 0.17

max: 0.27

-RPM rotations:

min:1680

max:2460

-Maximum operating temperature: 0 - 55 °C

-For supply and exhaust ventilation

-For ventilation of large and medium-sized rooms

-Low noise level min. 33 dBA max. 44 dBA

-Motor with external rotor on ball bearings with built-in overload protection

-High-quality plastic housing

-Speed control via speed controller

-For horizontal and vertical installation

-Security standard: IPX4

-Strong, robust and economical

-Vibration-free operation

-Includes euro connection cable

-Color: black

Gallery



Tech specs:
Maximum fan performance (m3 / h):
520
power (W):
54
Flange (mm):
150
Loudness (dB):
44
Airflow regulation:
yes
temperature regulation:
no
Real power consumption (W):
62
