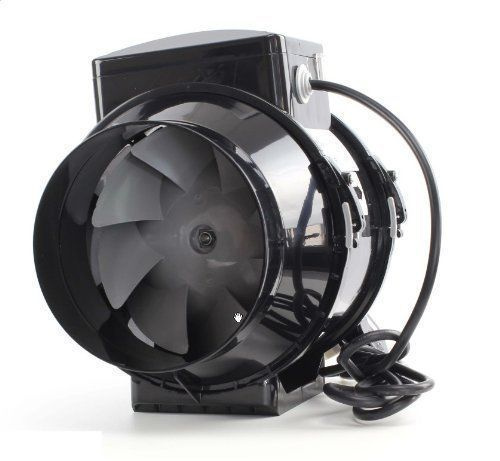

Fan HYBRID-FLO 125 ST 125 mm / 350 m3 / h

  • Fan HYBRID-FLO 125 ST 125 mm / 350 m3 / h
Producer: Black Orchid
Flange (mm): 125
  • Powerful Black Orchid duct fan with speed and temperature control
122,41 €
/ piece

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
HYBRID-FLO fans are interesting because of the wide range of possibilities and high performance, the technology made provides a strong airflow and high air pressure. Modern technology combines axial, mixed flows. Fans are recommended as part of ventilation systems for various commercial and industrial facilities with high noise requirements, i.e. libraries, conference rooms, educational institutions, kindergartens, etc.

Black Orchid HYBRID-FLO fan includes built-in speed and temperature control module

Specification





-Channel connection/diameter: 125mm (5")

-Bandwidth:

minimum: 240m3/h,

maximum: 350m3/h

-Power:

minimum: 25W

maximum: 30W

-Voltage [V/50HZ]: 1-230

-Ampere [A]

min: 0.11

max: 0.13

-RPM rotations:

min:1630

max:2300

-Maximum operating temperature: 0 - 30 °C

-For supply and exhaust ventilation

-For ventilation of large and medium-sized rooms

-Low noise level min. 29 dBA max. 34 dBA

-Motor with external rotor on ball bearings with built-in overload protection

-High-quality plastic housing

-Speed and temperature control with controls

-Cable with temperature sensor 4 meters long

-For horizontal and vertical installation

-Security standard: IPX4

-Strong, robust and economical

-Vibration-free operation

-Includes euro connection cable

-Color: black

Gallery



Tech specs:
power (W):
30
Flange (mm):
125
Loudness (dB):
34
Airflow regulation:
yes
temperature regulation:
yes
Maximum fan performance (m3 / h):
350
Real power consumption (W):
30
