Cultilite C600 Electronic Ballast 600W (dimmable & controllable) for HPS/MH Lamps

Producer: Cultilite

Product code: C600

The Cultilite C600 electronic ballast is designed for MH/HPS lamps and features adjustable power levels with a dimmer function, up to 600W.

Size:

Our price:

76,47 €

/ piece

Quantity:

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.

Show details

14 days to withdraw from the contract

Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.

No stress and worry

Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.

Easy returns wizard

All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

Cultilite C600 Electronic Ballast 600W (dimmable & controllable) - Electronic Power Supply for HPS/MH Lamps

The Cultilite C600 electronic ballast is designed for MH/HPS lamps and features adjustable power levels with a dimmer function. It allows manual power selection, compatibility with external controllers, and includes a Soft-Start function for smoother lamp ignition. Key advantages include high efficiency, low harmonic distortion, a “Super Lumen” boost mode, and external control capability via 0–10 V protocol.

Key Features:

Adjustable power settings in multiple steps to suit different MH/HPS lamp requirements
“Super Lumen” mode boosts output by ~10% at the cost of increased energy consumption
Soft-Start function reduces stress on the lamp and minimizes thermal shock during ignition
High efficiency and low harmonic distortion (low THD) for reduced losses and optimal energy use

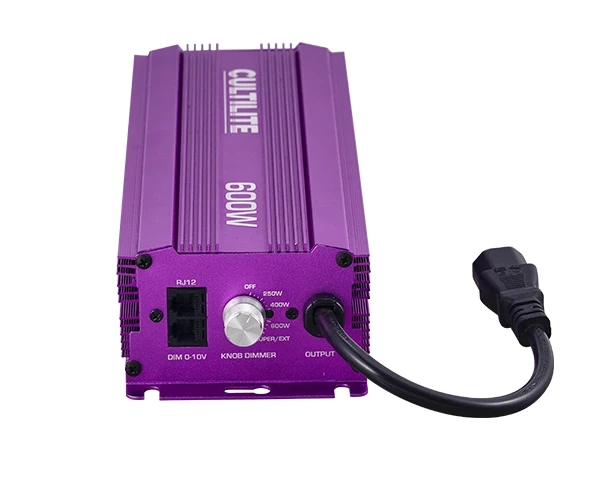

External control via 0–10 V protocol and RJ-12 (RJ-11) interface for integration with automation systems

Technical Specifications:

Parameter	Value
Rated power	600 W
Adjustable power levels	250 W / 400 W / 600 W + “Super Lumen” (~660 W)
Input voltage	220–240 V, 50–60 Hz
Input current	~2.96 A at 230 V; max. 3.7 A
Power factor (PF)	> 0.99
Total Harmonic Distortion (THD)	< 8%
Efficiency	> 94%
Ignition voltage	< 4 kV
Dimming / control	Manual + 0–10 V control (RJ-12 / RJ-11)
Operating temperature	up to 35 °C
Relative humidity	up to 90%, non-condensing
Soft-Start function	Yes

Safety instructions GPSR Download

Tech specs:

Power (W):	600
Type of power supply:	electronic
Does the power supply have the "BOOST" option:	Yes
Real power consumption (W):	600
The voltage (V) of the power supply:	230
