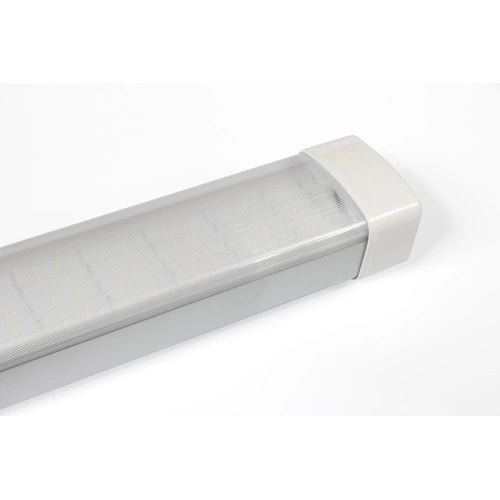

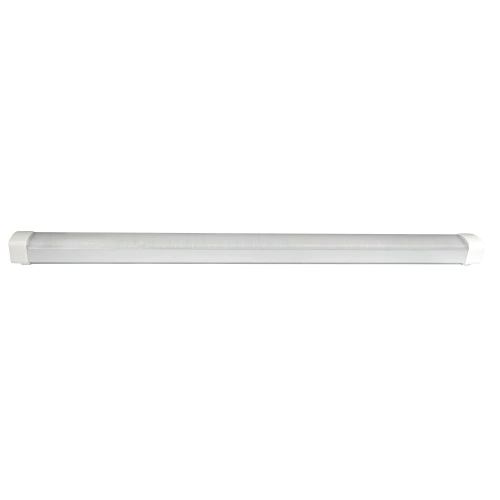

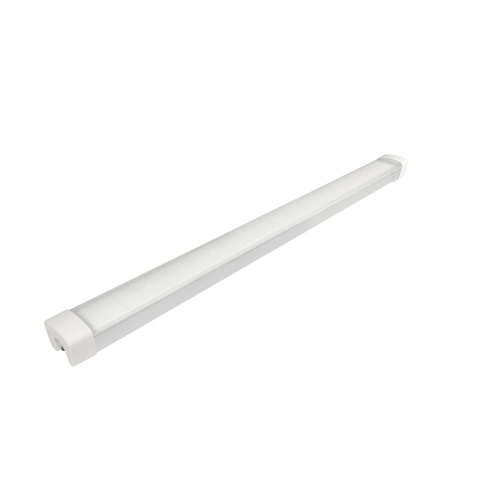

Cultilite Under Canopy 120W 3,0µmol/J - supplemental LED red light bar

The Cultilite Under Canopy 120W LED is a high-efficiency supplemental lighting system designed for advanced indoor cultivation. Its purpose is to deliver focused light to the lower sections of plants, reaching shaded areas beneath the canopy that standard overhead lighting cannot illuminate. By improving light penetration in these zones, the device supports healthier development, better uniformity, and higher-quality yields.

Key Features

• Power Consumption: 120 W ±5%.

• Light Efficacy (PPE): ≈3.0 µmol/J.

• Total Photon Flux (PPF): ≈360 µmol/s.

• Beam Angle: 10°, optimized for precise, targeted under-canopy illumination.

• Input Voltage: 120–277 VAC, 50/60 Hz.

• Input Current: approx. 0.6 A @ 220 VAC.

• Protection Rating: IP66 – dust-tight and resistant to strong water jets.

• Operating Temperature Range: −20 °C to +50 °C.

• Lifespan: > 50 000 hours.

• Dimensions: 1202 × 90 × 73.7 mm.

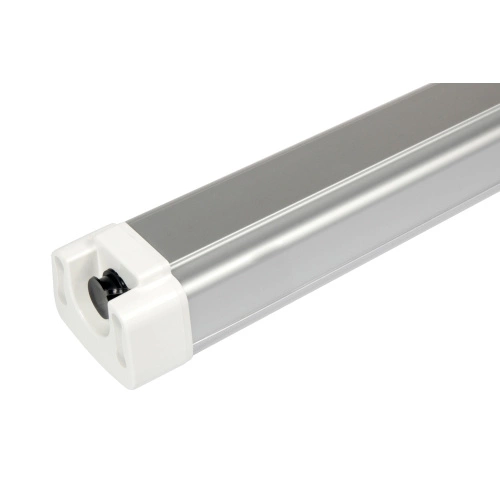

• Die-cast aluminum body for excellent heat dissipation and long-term durability.

Application

• Designed for under-canopy lighting in indoor grow rooms, greenhouses, and vertical farming systems.

• Ideal for environments where standard overhead lighting fails to sufficiently illuminate lower plant zones or in multi-layer cultivation setups.

• Particularly effective during denser growth phases or in the flowering phase where full light coverage is critical.

Advantages

• Significantly improves light penetration into lower branches and inner plant zones.

• High efficiency (≈3.0 µmol/J) ensures strong photosynthetic output with minimal wasted energy.

• Narrow 10° beam ensures that light is directed exactly where it’s needed, reducing light wastage.

• Durable IP66 build quality supports use in demanding cultivation environments with high humidity or dust.

• Larger format (120 W) offers increased power for larger canopy areas compared to smaller versions.

Technical Specifications Summary

Installation Notes

• Install below the plant canopy, directing the light upward into shaded areas for optimal results.

• Ensure adequate clearance and ventilation around the fixture to maintain optimal operating temperature and performance.

• Combine with overhead lighting for complete canopy coverage, especially in high-density or multi-layer setups.

• Activate or adjust in the flowering phase when lower plant zones are most at risk of being under-lit.

Summary

The Cultilite Under Canopy 120W LED offers a powerful and precise supplemental lighting solution, engineered to optimize light delivery beneath the canopy. With high efficiency, a focused 10° beam angle, robust construction and professional-grade specifications, it ensures that even the lowest parts of your crop receive the light they need for healthy growth, balanced development and superior yield quality.
